DevExtreme Pagination - Getting Started

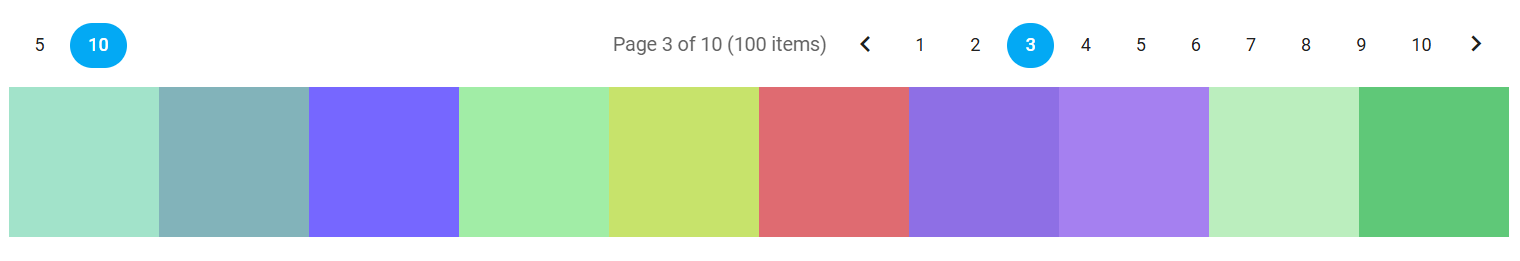

This repository stores code for the following DevExpress tutorial: Getting Started with DevExtreme Pagination. The project creates a UI component that allows users to navigate through pages.

Pagination## Files to Review

Documentation

Does this example address your development requirements/objectives?

(you will be redirected to DevExpress.com to submit your response)

Example Code

jQuery/src/index.js
JavaScript
/* eslint-disable no-console, default-case */ const total = 100; const hexCodes = []; const apiEndpoint = 'https://www.thecolorapi.com/id?hex='; const cache = new Map(); function fetchData(colorId) { return new Promise((resolve, reject) => { if (cache.has(colorId)) { resolve(cache.get(colorId)); } else { $.getJSON(apiEndpoint + colorId, (data) => { const colorData = { image: data.image.bare, name: data.name.value, }; cache.set(colorId, colorData); resolve(colorData); }).fail(() => { reject(new Error(`Error loading color for hex: ${colorId}`)); }); } }); } const getRandomPastelColor = () => { const hue = Math.floor(Math.random() * 360); const saturation = Math.random() * 0.4 + 0.2; const brightness = Math.random() * 0.3 + 0.7; return hsvToHex(hue, saturation, brightness); }; const hsvToHex = (h, s, v) => { let r = 0; let g = 0; let b = 0; const i = Math.floor(h / 60); const f = h / 60 - i; const p = v * (1 - s); const q = v * (1 - f * s); const t = v * (1 - (1 - f) * s); switch (i % 6) { case 0: r = v; g = t; b = p; break; case 1: r = q; g = v; b = p; break; case 2: r = p; g = v; b = t; break; case 3: r = p; g = q; b = v; break; case 4: r = t; g = p; b = v; break; case 5: r = v; g = p; b = q; break; } const toHex = (x) => { const hex = Math.round(x * 255).toString(16); return hex.length === 1 ? `0${hex}` : hex; }; return toHex(r) + toHex(g) + toHex(b); }; const renderCards = async (pageSize, pageIndex) => { $('#cards').empty(); const startIndex = (pageIndex - 1) * pageSize; const endIndex = pageIndex * pageSize; const hexSubset = hexCodes.slice(startIndex, endIndex); const promises = hexSubset.map((hex) => fetchData(hex)); try { const pageColors = await Promise.all(promises); pageColors.forEach((color) => { const image = $('<img>').attr({ src: color.image, alt: color.name, }); $('#cards').append(image); }); } catch (error) { console.error('Error rendering cards:', error); } }; $(() => { for (let i = 0; i < total; i += 1) { hexCodes.push(getRandomPastelColor()); } const loadPanel = $('#load-panel') .dxLoadPanel({ position: { my: 'top', at: 'top', of: '#cards', }, visible: false, showIndicator: true, showPane: true, hideOnOutsideClick: false, }) .dxLoadPanel('instance'); const pagination = $('#pagination') .dxPagination({ showInfo: true, showNavigationButtons: true, itemCount: total, pageIndex: 3, pageSize: 5, onOptionChanged: (e) => { if (e.name === 'pageSize' || e.name === 'pageIndex') { const pageIndex = pagination.option('pageIndex'); const pageSize = pagination.option('pageSize'); loadPanel.show(); renderCards(pageSize, pageIndex).finally(() => loadPanel.hide()); } }, }) .dxPagination('instance'); const pageSize = pagination.option('pageSize'); const pageIndex = pagination.option('pageIndex'); loadPanel.show(); renderCards(pageSize, pageIndex).finally(() => loadPanel.hide()); });
Angular/src/app/app.component.html
HTML
<div class="container"> <dx-load-panel [(visible)]="loadPanelVisible" [showIndicator]="true" [showPane]="true" [hideOnOutsideClick]="false" ><dxo-position my="top" at="top" of="#cards"> </dxo-position> </dx-load-panel> <dx-pagination [showInfo]="true" [showNavigationButtons]="true" [itemCount]="total" [pageIndex]="pageIndex" [pageSize]="pageSize" (pageIndexChange)="onPageIndexChange($event)" (pageSizeChange)="onPageSizeChange($event)" > </dx-pagination> <div id="cards"> <ng-container *ngFor="let color of visibleCards"> <img [src]="color.image" [alt]="color.name" /> </ng-container> </div> </div>
Angular/src/app/app.component.ts
TypeScript
/* eslint-disable @typescript-eslint/no-non-null-assertion, no-else-return, no-console, no-void */ import { Component } from '@angular/core'; import { firstValueFrom } from 'rxjs'; import { ColorService, Color } from './app.service'; @Component({ selector: 'app-root', templateUrl: './app.component.html', styleUrls: ['./app.component.scss'], providers: [ColorService], }) export class AppComponent { loadPanelVisible = false; total = 100; colors: Map<string, Color> = new Map(); hexCodes: string[] = []; visibleCards: Color[] = []; pageIndex = 3; pageSize = 5; constructor(private readonly colorService: ColorService) {} ngOnInit(): void { this.generateHexCodes(); void this.fetchColorsForPage(); } generateHexCodes(): void { for (let i = 0; i < this.total; i++) { this.hexCodes.push(this.colorService.getRandomPastelColor()); } } async fetchColorsForPage(): Promise<void> { const startIndex = (this.pageIndex - 1) * this.pageSize; const endIndex = this.pageIndex * this.pageSize; const hexSubset = this.hexCodes.slice(startIndex, endIndex); const promises: Promise<Color>[] = hexSubset.map((hex) => { if (this.colors.has(hex)) { return Promise.resolve(this.colors.get(hex)!); } else { return firstValueFrom(this.colorService.fetchColorData(hex)).then((data) => { const colorData: Color = data; this.colors.set(hex, colorData); return colorData; }); } }); this.loadPanelVisible = true; try { const fetchedColors = await Promise.all(promises); this.visibleCards = fetchedColors; } catch (error) { console.error('Error fetching colors:', error); } finally { this.loadPanelVisible = false; } } onPageIndexChange(val: number): void { this.pageIndex = val; void this.fetchColorsForPage(); } onPageSizeChange(val: number): void { this.pageSize = val; void this.fetchColorsForPage(); } }
Vue/src/components/HomeContent.vue
Code
<template> <div class="container"> <DxLoadPanel v-model:visible="loadPanelVisible" :show-indicator="true" :show-pane="true" :hide-on-outside-click="false" > <DxPosition my="top" at="top" of="#cards" /> </DxLoadPanel> <DxPagination :show-info="true" :show-navigation-buttons="true" v-model:page-index="pageIndex" v-model:page-size="pageSize" :item-count="total" @update:page-index="onPageIndexChange" @update:page-size="onPageSizeChange" /> <div id="cards"> <div v-for="color in visibleCards" :key="color.name"> <img :src="color.image" :alt="color.name" /> </div> </div> </div> </template> <script setup lang="ts"> import 'devextreme/dist/css/dx.light.css'; import { ref, onMounted } from 'vue'; import { fetchColorData, getRandomPastelColor } from '../assets/colorService'; import { DxPagination } from 'devextreme-vue'; import { DxLoadPanel, DxPosition } from 'devextreme-vue/load-panel'; interface Color { image: string; name: string; } const total = 100; const pageSize = ref(5); const pageIndex = ref(3); const loadPanelVisible = ref(false); const visibleCards = ref([] as Color[]); const hexCodes = ref<string[]>([]); const colorCache = new Map<string, Color>(); const generateHexCodes = () => { for (let i = 0; i < total; i++) { hexCodes.value.push(getRandomPastelColor()); } }; const fetchColorsForPage = async () => { loadPanelVisible.value = true; const startIndex = (pageIndex.value - 1) * pageSize.value; const endIndex = startIndex + pageSize.value; const hexSubset = hexCodes.value.slice(startIndex, endIndex); const promises = hexSubset.map((hex) => { if (colorCache.has(hex)) { return Promise.resolve(colorCache.get(hex)); } return fetchColorData(hex).then((color) => { if (color) { colorCache.set(hex, color); } return color; }); }); try { const results = await Promise.all(promises); visibleCards.value = results.filter((color): color is Color => color !== null); } catch (error) { console.error('Error fetching colors:', error); } finally { loadPanelVisible.value = false; } }; const onPageIndexChange = (value: number) => { pageIndex.value = value; fetchColorsForPage(); }; const onPageSizeChange = (value: number) => { pageSize.value = value; fetchColorsForPage(); }; onMounted(() => { generateHexCodes(); fetchColorsForPage(); }); </script> <style> #cards { display: flex; justify-content: center; flex-wrap: wrap; } </style>
