Reporting for Web - Integrate .NET Aspire Dashboard to the ASP.NET Core Reporting App

This example shows a .NET Aspire Dashboard integrated into an ASP.NET Core Document Viewer application.

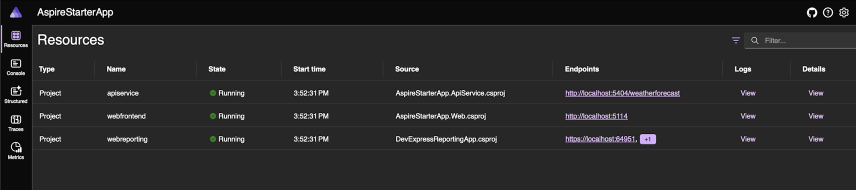

.net aspire dashboard for asp .net code document viewer

Prerequisites

To work with .NET Aspire, you need the following:

Add DevExpress NuGet Packages

Reference the following NuGet packages in your Reporting application:

  • DevExpress.Aspire.Reporting
  • DevExpress.Aspire.AspNetCore.Reporting

Implementation Details

  1. Add the following project references:
    Project Reference
    AppHost/Orchestration project (usually with an *.AppHost suffix) DevExpress Reports application
    DevExpress Reports application ServiceDefaults application
  2. Open your reporting project. Add the following method calls to Program.cs:
    C#
    var builder = WebApplication.CreateBuilder(args); builder.Services.AddDevExpressControls(); // Important note: Enable .NET Aspire integration after an AddDevExpressControls method call // Enable service discovery and configure OpenTelemetry metrics and tracing for .NET Aspire. // Learn more at: https://learn.microsoft.com/en-us/dotnet/aspire/fundamentals/service-defaults builder.AddServiceDefaults(); // Share trace data with the .NET Aspire Dashboard from DevExpress Reports document creation and exporting builder.AddReporting(); // Share trace and metrics data with the .NET Aspire Dashboard for the DevExpress Reports back end services builder.AddAspNetCoreReporting();
  3. Navigate to the AppHost project. Add the following project reference code to Program.cs:
    C#
    var builder = DistributedApplication.CreateBuilder(args); builder.AddProject<Projects.DevExpressReportingApp>("webreporting") .WithExternalHttpEndpoints(); builder.Build().Run();
  4. Build and run the *.AppHost solution to view output in the .NET Aspire dashboard.

Files to Review

Does this example address your development requirements/objectives?

(you will be redirected to DevExpress.com to submit your response)

Example Code

AspireStarterApp/DevExpressReportingApp/Program.cs
C#
using System; using System.Collections.Generic; using System.IO; using System.Linq; using System.Threading.Tasks; using Microsoft.AspNetCore; using Microsoft.AspNetCore.Hosting; using Microsoft.Extensions.Configuration; using Microsoft.Extensions.Logging; using DevExpress.AspNetCore; using DevExpress.AspNetCore.Reporting; using DevExpress.Security.Resources; using DevExpress.XtraReports.Web.Extensions; using Microsoft.AspNetCore.Builder; using Microsoft.EntityFrameworkCore; using Microsoft.Extensions.DependencyInjection; using Microsoft.Extensions.Hosting; using DevExpressReportingApp.Services; using DevExpressReportingApp.Data; var builder = WebApplication.CreateBuilder(args); builder.Services.AddDevExpressControls(); builder.AddServiceDefaults(); builder.AddReporting(); builder.AddAspNetCoreReporting(); builder.Services.AddScoped<ReportStorageWebExtension, CustomReportStorageWebExtension>(); builder.Services.AddMvc(); builder.Services.ConfigureReportingServices(configurator => { if(builder.Environment.IsDevelopment()) { configurator.UseDevelopmentMode(); } configurator.ConfigureReportDesigner(designerConfigurator => { designerConfigurator.RegisterDataSourceWizardConnectionStringsProvider<CustomSqlDataSourceWizardConnectionStringsProvider>(); designerConfigurator.RegisterDataSourceWizardJsonConnectionStorage<CustomDataSourceWizardJsonDataConnectionStorage>(true); }); configurator.ConfigureWebDocumentViewer(viewerConfigurator => { viewerConfigurator.UseCachedReportSourceBuilder(); viewerConfigurator.RegisterJsonDataConnectionProviderFactory<CustomJsonDataConnectionProviderFactory>(); viewerConfigurator.RegisterConnectionProviderFactory<CustomSqlDataConnectionProviderFactory>(); }); }); builder.Services.AddDbContext<ReportDbContext>(options => options.UseSqlite(builder.Configuration.GetConnectionString("ReportsDataConnectionString"))); var app = builder.Build(); using(var scope = app.Services.CreateScope()) { var services = scope.ServiceProvider; services.GetService<ReportDbContext>().InitializeDatabase(); } var contentDirectoryAllowRule = DirectoryAccessRule.Allow(new DirectoryInfo(Path.Combine(builder.Environment.ContentRootPath, "Content")).FullName); AccessSettings.ReportingSpecificResources.TrySetRules(contentDirectoryAllowRule, UrlAccessRule.Allow()); DevExpress.XtraReports.Configuration.Settings.Default.UserDesignerOptions.DataBindingMode = DevExpress.XtraReports.UI.DataBindingMode.Expressions; app.UseDevExpressControls(); System.Net.ServicePointManager.SecurityProtocol |= System.Net.SecurityProtocolType.Tls12; if(app.Environment.IsDevelopment()) { app.UseDeveloperExceptionPage(); } else { app.UseExceptionHandler("/Home/Error"); // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts. app.UseHsts(); } app.UseHttpsRedirection(); app.UseStaticFiles(); app.UseRouting(); app.UseAuthorization(); app.MapControllerRoute( name: "default", pattern: "{controller=Home}/{action=Index}/{id?}"); app.Run();
AspireStarterApp/AspireStarterApp.AppHost/Program.cs
C#
var builder = DistributedApplication.CreateBuilder(args); var apiService = builder.AddProject<Projects.AspireStarterApp_ApiService>("apiservice"); builder.AddProject<Projects.AspireStarterApp_Web>("webfrontend") .WithExternalHttpEndpoints() .WithReference(apiService); builder.AddProject<Projects.DevExpressReportingApp>("webreporting") .WithExternalHttpEndpoints(); builder.Build().Run();
