Connect a WinForms Data Grid to an ASP.NET Core WebAPI Service Powered by EF Core — Authenticate Users and Protect Data

C#
using System.Diagnostics;
using System.IdentityModel.Tokens.Jwt;
using System.Net.Http;
using System.Net.Http.Headers;
using System.Text;
using System.Text.Json;
using System.Text.Json.Nodes;

namespace WinForms.Client
{
    public static class DataServiceClient
    {
        public class BearerTokenHandler : DelegatingHandler
        {
            public BearerTokenHandler()
            {
                InnerHandler = new HttpClientHandler();
            }

            protected override async Task<HttpResponseMessage> SendAsync(HttpRequestMessage request, CancellationToken cancellationToken)
            {
                if (!String.IsNullOrWhiteSpace(accessToken))
                {
                    if (!String.IsNullOrWhiteSpace(refreshToken) &&
                        lastRefreshed.HasValue &&
                        expiresIn.HasValue &&
                        DateTime.Now - lastRefreshed > TimeSpan.FromSeconds((int)(expiresIn - 60)))
                    {
                        if (string.IsNullOrEmpty(authUrl))
                            throw new InvalidOperationException("The 'authUrl' configuration setting is missing.");
                        if (string.IsNullOrEmpty(realm))
                            throw new InvalidOperationException("The 'realm' configuration setting is missing.");
                        if (string.IsNullOrEmpty(clientId))
                            throw new InvalidOperationException("The 'clientId' configuration setting is missing.");

                        var content = new FormUrlEncodedContent(new Dictionary<string, string>
                        {
                            {"grant_type", "refresh_token"},
                            {"client_id", clientId},
                            {"refresh_token", refreshToken}
                        });

                        var url = $"{authUrl}/realms/{realm}/protocol/openid-connect/token";
                        var response = await bareHttpClient.PostAsync(url, content);
                        response.EnsureSuccessStatusCode();
                        var responseString = await response.Content.ReadAsStringAsync();
                        (accessToken, refreshToken, expiresIn) = GetTokens(responseString);
                        if (accessToken != null)
                        {
                            lastRefreshed = DateTime.Now;
                            (name, realmRoles) = GetUserDetails(accessToken);
                        }
                    }
                    request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", accessToken);
                }
                return await base.SendAsync(request, cancellationToken);
            }
        }

        static DataServiceClient()
        {
            if (string.IsNullOrEmpty(baseUrl))
                throw new InvalidOperationException("The 'baseUrl' configuration setting is missing.");
        }

        static string? baseUrl = System.Configuration.ConfigurationManager.AppSettings["baseUrl"];

        static string? accessToken;
        public static bool LoggedIn => accessToken != null;
        static string? refreshToken;
        static int? expiresIn;
        static DateTime? lastRefreshed;
        static string? name;
        public static string? Name => name;
        static string?[]? realmRoles;
        public static bool UserHasRole(string role) => realmRoles != null && realmRoles.Contains(role);
        static string? clientId = System.Configuration.ConfigurationManager.AppSettings["clientId"];
        static string? realm = System.Configuration.ConfigurationManager.AppSettings["realm"];
        static string? authUrl = System.Configuration.ConfigurationManager.AppSettings["authUrl"];

        static HttpClient bareHttpClient = new HttpClient();

        static (string? access_token, string? refresh_token, int? expires_in) GetTokens(string jsonString)
        {
            var node = JsonNode.Parse(jsonString);
            if (node == null)
                return (null, null, null);
            else
                return (node["access_token"]?.GetValue<string>(),
                    node["refresh_token"]?.GetValue<string>(),
                    node["expires_in"]?.GetValue<int>());
        }

        static (string? name, string?[] realmRoles) GetUserDetails(string? accessToken)
        {
            if (String.IsNullOrEmpty(accessToken))
                return (null, []);
            var handler = new JwtSecurityTokenHandler();
            var token = handler.ReadJwtToken(accessToken);

            var claim = (string claimType) => token.Claims.FirstOrDefault(c => c.Type == claimType)?.Value;
            var name = claim("name");
            var realmAccess = claim("realm_access");
            var node = JsonNode.Parse(realmAccess);
            if (node == null || node["roles"] == null) return (name, []);
            var array = node["roles"]!.AsArray();
            var realmRoles = array.Select(r => r?.GetValue<string>()).ToArray();

            return (name, realmRoles);
        }

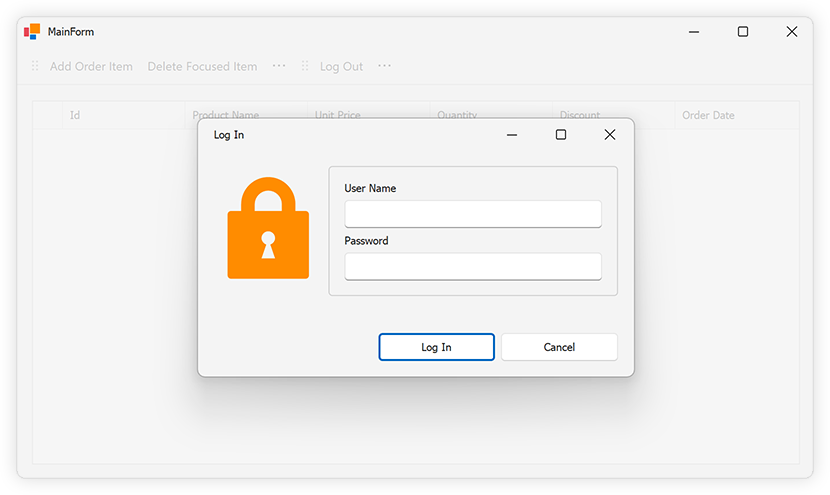

        public static async Task<bool> LogIn(string username, string password)
        {
            if (string.IsNullOrEmpty(authUrl))
                throw new InvalidOperationException("The 'authUrl' configuration setting is missing.");
            if (string.IsNullOrEmpty(realm))
                throw new InvalidOperationException("The 'realm' configuration setting is missing.");
            if (string.IsNullOrEmpty(clientId))
                throw new InvalidOperationException("The 'clientId' configuration setting is missing.");

            var content = new FormUrlEncodedContent(new Dictionary<string, string>
            {
                {"client_id", clientId},
                {"username", username},
                {"password", password},
                {"grant_type", "password"}
            });
            var url = $"{authUrl}/realms/{realm}/protocol/openid-connect/token";
            var response = await bareHttpClient.PostAsync(url, content);
            try
            {
                response.EnsureSuccessStatusCode();
                var responseString = await response.Content.ReadAsStringAsync();
                (accessToken, refreshToken, expiresIn) = GetTokens(responseString);
                if (accessToken != null)
                {
                    lastRefreshed = DateTime.Now;
                    (name, realmRoles) = GetUserDetails(accessToken);
                }
                return true;
            }
            catch (Exception ex)
            {
                Debug.WriteLine(ex);
                return false;
            }
        }

        public static void LogOut()
        {
            accessToken = null;
            refreshToken = null;
            expiresIn = null;
            lastRefreshed = null;
            name = null;
            realmRoles = null;
        }

        static HttpClient authorizedHttpClient = new HttpClient(new BearerTokenHandler());

        public static async Task<DataFetchResult?> GetOrderItemsAsync(int skip, int take, string sortField, bool sortAscending)
        {
            var response = await authorizedHttpClient.GetAsync(
                $"{baseUrl}/data/OrderItems?skip={skip}&take={take}&sortField={sortField}&sortAscending={sortAscending}");
            response.EnsureSuccessStatusCode();
            var responseBody = await response.Content.ReadAsStringAsync();

            var dataFetchResult = JsonSerializer.Deserialize<DataFetchResult>(responseBody, new JsonSerializerOptions
            {
                PropertyNameCaseInsensitive = true
            });
            return dataFetchResult;
        }

        static OrderItem? AsOrderItem(this string responseBody)
        {
            return JsonSerializer.Deserialize<OrderItem>(responseBody, new JsonSerializerOptions
            {
                PropertyNameCaseInsensitive = true
            });
        }

        public static async Task<OrderItem?> GetOrderItemAsync(int id)
        {
            var response = await authorizedHttpClient.GetAsync($"{baseUrl}/data/OrderItem/{id}");
            response.EnsureSuccessStatusCode();
            var responseBody = await response.Content.ReadAsStringAsync();
            return responseBody.AsOrderItem();
        }

        public static async Task<OrderItem?> CreateOrderItemAsync(OrderItem orderItem)
        {
            var response = await authorizedHttpClient.PostAsync($"{baseUrl}/data/OrderItem",
                new StringContent(JsonSerializer.Serialize(orderItem), Encoding.UTF8, "application/json"));
            response.EnsureSuccessStatusCode();
            var responseBody = await response.Content.ReadAsStringAsync();
            return responseBody.AsOrderItem();
        }

        public static async Task UpdateOrderItemAsync(OrderItem orderItem)
        {
            var response = await authorizedHttpClient.PutAsync($"{baseUrl}/data/OrderItem/{orderItem.Id}",
                new StringContent(JsonSerializer.Serialize(orderItem), Encoding.UTF8, "application/json"));
            response.EnsureSuccessStatusCode();
        }

        public static async Task<bool> DeleteOrderItemAsync(int id)
        {
            try
            {
                var response = await authorizedHttpClient.DeleteAsync($"{baseUrl}/data/OrderItem/{id}");
                response.EnsureSuccessStatusCode();
                return true;
            }
            catch (Exception ex)
            {
                Debug.WriteLine(ex);
                return false;
            }
        }
    }
}

C#
using DataService;
using Microsoft.AspNetCore.Authentication.JwtBearer;
using Microsoft.AspNetCore.Authorization;
using Microsoft.EntityFrameworkCore;
using Microsoft.IdentityModel.Tokens;
using System.Linq.Dynamic.Core;
using System.Reflection;
using System.Text.Json.Nodes;
using System.Xml.Serialization;

var builder = WebApplication.CreateBuilder(args);

string? connectionString = builder.Configuration.GetConnectionString("ConnectionString");
var publicKey = await GetKeycloakPublicKey(builder.Configuration["Jwt:KeycloakUrl"]!, builder.Configuration["Jwt:Realm"]!);

builder.Services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
    .AddJwtBearer(options =>
    {
        options.RequireHttpsMetadata = false; // Development only!!

        options.TokenValidationParameters = new TokenValidationParameters
        {
            ValidateIssuer = true,
            ValidIssuer = $"{builder.Configuration["Jwt:KeycloakUrl"]}/realms/{builder.Configuration["Jwt:Realm"]}",
            ValidateAudience = true,
            ValidAudience = builder.Configuration["Jwt:Audience"],
            ValidateLifetime = true,
            ValidateIssuerSigningKey = true,
            IssuerSigningKey = publicKey
        };
    });
builder.Services.AddAuthorization(o =>
{
    o.AddPolicy("writers", p => p.RequireRealmRole("writers"));
});


builder.Services.AddDbContext<DataServiceDbContext>(o =>
  o.UseSqlServer(connectionString, options =>
  {
      options.EnableRetryOnFailure();
  }));

var app = builder.Build();
app.UseAuthentication();
app.UseAuthorization();

// Make sure the database exists and is current
using (var scope = app.Services.CreateScope())
{
    var dbContext = scope.ServiceProvider.GetRequiredService<DataServiceDbContext>();
    dbContext.Database.Migrate();
}


// Note that this endpoint is NOT configured to require authorization. For the demo,
// this makes it possible to populate the database with test data without having to
// authenticate first. In a real-world application, you would want to secure this endpoint.

app.MapGet("/api/populateTestData", async (DataServiceDbContext dbContext) =>
{
    var assembly = Assembly.GetExecutingAssembly();
    Console.WriteLine(String.Join("\n", assembly.GetManifestResourceNames()));
    var resourceName = assembly.GetManifestResourceNames().Single(str => str.EndsWith("order_items.xml"));

    var serializer = new XmlSerializer(typeof(List<OrderItem>));

    using Stream? stream = assembly.GetManifestResourceStream(resourceName);
    if (stream is not null)
    {
        var items = (List<OrderItem>?)serializer.Deserialize(stream);

        if (items is not null)
        {
            dbContext.OrderItems.AddRange(items);
            await dbContext.SaveChangesAsync();
            return Results.Ok("Data populated successfully");
        }
    }

    return Results.NotFound("Error populating data");
});

// The following two endpoints are read-only, so they only require an authenticated user.

app.MapGet("/data/OrderItems", async (DataServiceDbContext dbContext, int skip = 0, int take = 20, string sortField = "Id", bool sortAscending = true) =>
{
    var source = dbContext.OrderItems.AsQueryable().OrderBy(sortField + (sortAscending ? " ascending" : " descending"));
    var items = await source.Skip(skip).Take(take).ToListAsync();

    var totalCount = await dbContext.OrderItems.CountAsync();

    return Results.Ok(new
    {
        Items = items,
        TotalCount = totalCount
    });
}).RequireAuthorization();

app.MapGet("/data/OrderItem/{id}", async (DataServiceDbContext dbContext, int id) =>
{
    var orderItem = await dbContext.OrderItems.FindAsync(id);

    if (orderItem is null)
    {
        return Results.NotFound();
    }

    return Results.Ok(orderItem);
}).RequireAuthorization();


// The following endpoints are read-write, so they require an authenticated user and
// compliance with the "writers" policy.

app.MapPost("/data/OrderItem", async (DataServiceDbContext dbContext, OrderItem orderItem) =>
{
    dbContext.OrderItems.Add(orderItem);
    await dbContext.SaveChangesAsync();
    return Results.Created($"/data/OrderItem/{orderItem.Id}", orderItem);
}).RequireAuthorization("writers");

app.MapPut("/data/OrderItem/{id}", async (DataServiceDbContext dbContext, int id, OrderItem orderItem) =>
{
    if (id != orderItem.Id)
    {
        return Results.BadRequest("Id mismatch");
    }

    dbContext.Entry(orderItem).State = EntityState.Modified;
    await dbContext.SaveChangesAsync();
    return Results.NoContent();
}).RequireAuthorization("writers");

app.MapDelete("/data/OrderItem/{id}", async (DataServiceDbContext dbContext, int id) =>
{
    var orderItem = await dbContext.OrderItems.FindAsync(id);

    if (orderItem is null)
    {
        return Results.NotFound();
    }

    dbContext.OrderItems.Remove(orderItem);
    await dbContext.SaveChangesAsync();
    return Results.NoContent();
}).RequireAuthorization("writers");

app.Run();



static async Task<SecurityKey> GetKeycloakPublicKey(string keycloakUrl, string realm)
{
    using (var httpClient = new HttpClient())
    {
        var jwksUrl = $"{keycloakUrl}/realms/{realm}/protocol/openid-connect/certs";
        var jwksJson = await httpClient.GetStringAsync(jwksUrl);
        var jwks = new JsonWebKeySet(jwksJson);
        return jwks.Keys[0];
    }
}


public static class PolicyHelpers
{
    public static void RequireRealmRole(this AuthorizationPolicyBuilder policy, string roleName)
    {
        policy.RequireAssertion(context =>
        {
            var realmAccess = context.User.FindFirst("realm_access")?.Value;
            if (realmAccess == null) return false;
            var node = JsonNode.Parse(realmAccess);
            if (node == null || node["roles"] == null) return false;
            var array = node["roles"]!.AsArray();
            return array.Select(r => r?.GetValue<string>()).Contains(roleName);
        });
    }
}

C#
using DevExpress.XtraEditors;

namespace WinForms.Client
{
    public partial class LoginForm : DevExpress.XtraEditors.XtraForm
    {
        public LoginForm()
        {
            InitializeComponent();
        }

        private async void loginButton_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(userNameEdit.Text) || string.IsNullOrEmpty(passwordEdit.Text))
            {
                XtraMessageBox.Show("Please enter username and password", "Error",
                    MessageBoxButtons.OK, MessageBoxIcon.Error);
                return;
            }

            if (await DataServiceClient.LogIn(userNameEdit.Text, passwordEdit.Text))
            {
                this.DialogResult = DialogResult.OK;
                this.Close();
            }
            else
            {
                XtraMessageBox.Show("Username or password are invalid, or a technical error occurred.", "Error",
                    MessageBoxButtons.OK, MessageBoxIcon.Error);
            }
        }
    }
}

C#
using DevExpress.XtraEditors;
using DevExpress.XtraGrid.Views.Base;
using DevExpress.XtraGrid.Views.Grid;
using DevExpress.XtraSplashScreen;
using System.Drawing.Text;

namespace WinForms.Client
{
    public partial class MainForm : XtraForm
    {
        public MainForm()
        {
            InitializeComponent();
        }

        class CustomOverlayTextPainter(string text) : OverlayWindowPainterBase
        {
            static readonly Font font = new("Tahoma", 16, FontStyle.Bold);

            protected override void Draw(OverlayWindowCustomDrawContext context)
            {
                var cache = context.DrawArgs.Cache;
                cache.TextRenderingHint = TextRenderingHint.AntiAlias;

                context.DrawBackground();

                var bounds = context.DrawArgs.Bounds;
                var midX = bounds.Left + bounds.Width / 2;
                var midY = bounds.Top + bounds.Height / 2;

                SizeF textSize = cache.CalcTextSize(text, font);
                cache.DrawString(text, font, Brushes.Black, new PointF(midX - textSize.Width / 2, midY + 30));

                context.Handled = true;
            }
        }

        class CustomOverlayImagePainter : OverlayImagePainter
        {
            public CustomOverlayImagePainter(Image image, Action clickAction) : base(image, clickAction: clickAction) { }

            protected override Rectangle CalcImageBounds(OverlayLayeredWindowObjectInfoArgs drawArgs)
            {
                var midX = drawArgs.Bounds.Left + drawArgs.Bounds.Width / 2;
                var midY = drawArgs.Bounds.Top + drawArgs.Bounds.Height / 2;
                return new Rectangle(new Point(midX - Image.Size.Width / 2, midY - Image.Size.Height / 2 - 50), Image.Size);
            }
        }

        IOverlaySplashScreenHandle? overlayHandle;

        protected override void OnShown(EventArgs e)
        {
            base.OnShown(e);

            ShowOverlay();
        }

        private void ShowOverlay()
        {
            overlayHandle = SplashScreenManager.ShowOverlayForm(this,
                opacity: 200,
                customPainter: new OverlayWindowCompositePainter(
                    new CustomOverlayTextPainter("Click the lock to log in"),
                    new CustomOverlayImagePainter(svgImageCollection.GetImage(0), LogIn)
            ));
        }

        private void LogIn()
        {
            if (!DataServiceClient.LoggedIn)
            {
                var loginForm = new LoginForm();
                loginForm.ShowDialog();
                if (DataServiceClient.LoggedIn)
                {
                    EvaluateRoles();
                    logOutItem.Caption = $"Log out {DataServiceClient.Name}{(userIsWriter ? " (Writer)" : "")}";
                    if (overlayHandle is not null)
                        SplashScreenManager.CloseOverlayForm(overlayHandle);
                    Invoke(new Action(() => { gridControl.DataSource = virtualServerModeSource; }));
                }
            }
        }

        private void logOutItem_ItemClick(object sender, DevExpress.XtraBars.ItemClickEventArgs e)
        {
            if (DataServiceClient.LoggedIn)
            {
                EvaluateRoles();
                gridControl.DataSource = null;
                logOutItem.Caption = "Log Out";
                DataServiceClient.LogOut();
                ShowOverlay();
            }
        }

        private bool userIsWriter = false;

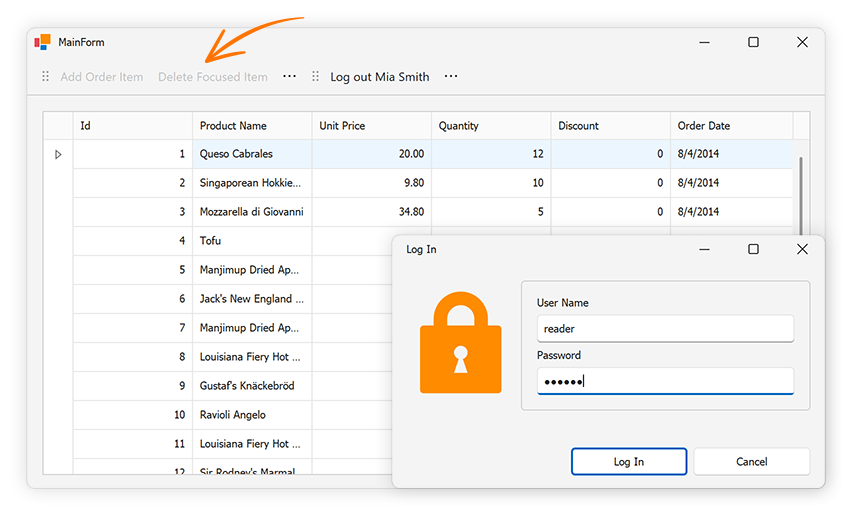

        private void EvaluateRoles()
        {
            if (DataServiceClient.LoggedIn)
            {
                if (DataServiceClient.UserHasRole("writers"))
                {
                    userIsWriter = true;
                    addItemButton.Enabled = true;
                    deleteItemButton.Enabled = true;
                }
                else
                {
                    userIsWriter = false;
                    addItemButton.Enabled = false;
                    deleteItemButton.Enabled = false;
                }
            }
            else
            {
                userIsWriter = false;
                addItemButton.Enabled = false;
                deleteItemButton.Enabled = false;
            }
        }

        private VirtualServerModeDataLoader? loader;

        private void VirtualServerModeSource_ConfigurationChanged(object? sender, DevExpress.Data.VirtualServerModeRowsEventArgs e)
        {
            loader = new VirtualServerModeDataLoader(e.ConfigurationInfo);
            e.RowsTask = loader.GetRowsAsync(e);
        }

        private void VirtualServerModeSource_MoreRows(object? sender, DevExpress.Data.VirtualServerModeRowsEventArgs e)
        {
            if (loader is not null)
            {
                e.RowsTask = loader.GetRowsAsync(e);
            }
        }

        private void NotAWriterError()
        {
            XtraMessageBox.Show("You are not authorized to edit items.", "Error",
                MessageBoxButtons.OK, MessageBoxIcon.Error);
        }

        private async void gridView1_DoubleClick(object sender, EventArgs e)
        {
            if (!userIsWriter)
            {
                NotAWriterError();
                return;
            }
            if (sender is GridView view)
            {
                if (view.FocusedRowObject is OrderItem oi)
                {
                    var editResult = EditForm.EditItem(oi);
                    if (editResult.changesSaved)
                    {
                        await DataServiceClient.UpdateOrderItemAsync(editResult.item);
                        view.RefreshData();
                    }
                }
            }
        }

        private async void addItemButton_ItemClick(object sender, DevExpress.XtraBars.ItemClickEventArgs e)
        {
            if (!userIsWriter)
            {
                NotAWriterError();
                return;
            }
            if (gridControl.FocusedView is ColumnView view)
            {
                var createResult = EditForm.CreateItem();
                if (createResult.changesSaved)
                {
                    await DataServiceClient.CreateOrderItemAsync(createResult.item!);
                    view.RefreshData();
                }
            }
        }

        private async void deleteItemButton_ItemClick(object sender, DevExpress.XtraBars.ItemClickEventArgs e)
        {
            if (!userIsWriter)
            {
                NotAWriterError();
                return;
            }
            if (gridControl.FocusedView is ColumnView view &&
                view.GetFocusedRow() is OrderItem orderItem)
            {
                await DataServiceClient.DeleteOrderItemAsync(orderItem.Id);
                view.RefreshData();
            }
        }

    }
}
